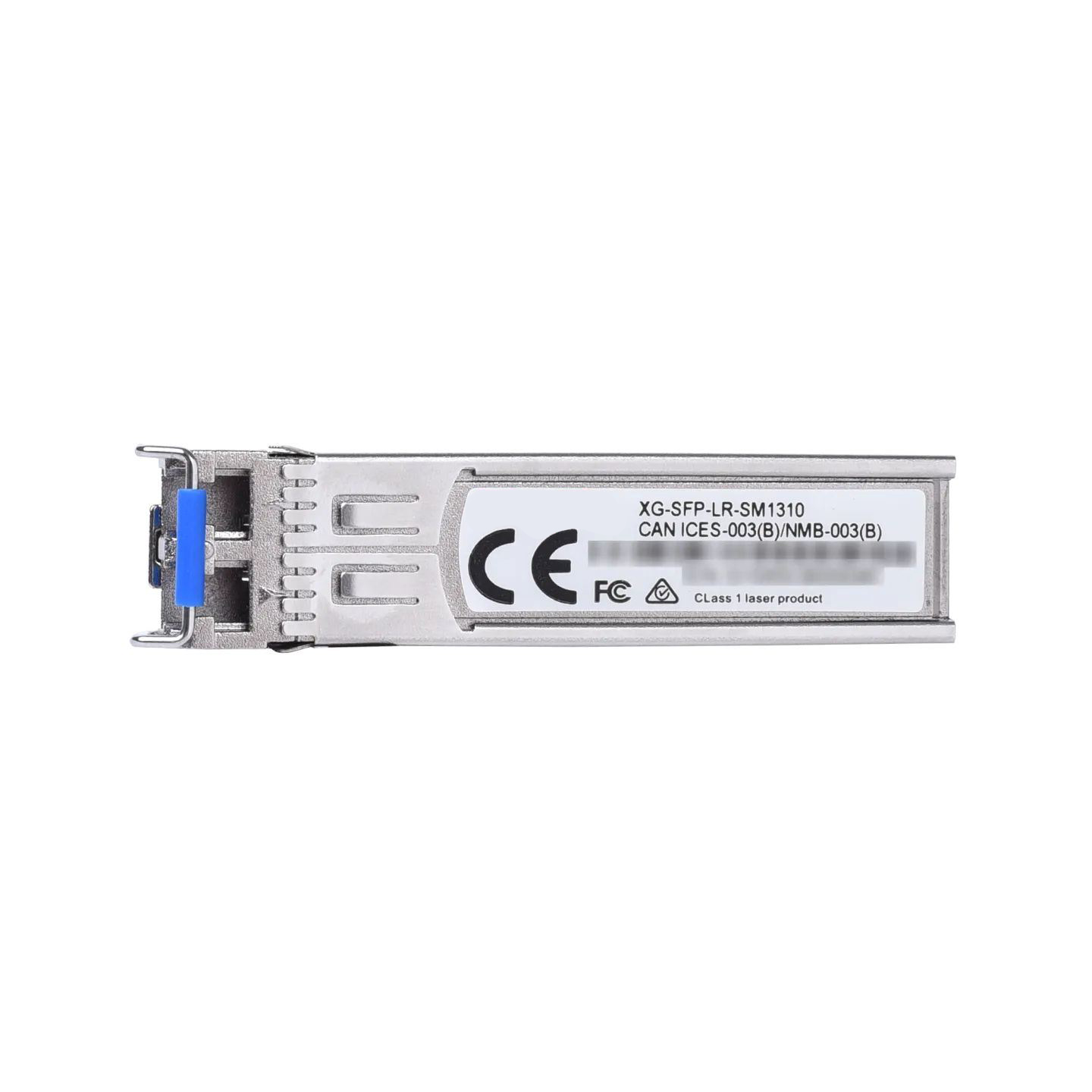

XG-SFP-LR-SM1310
документация
Features
- Max. power consumption 1.5 W
- Hot pluggable SFP+ MSA compliant
- Digital optical monitoring capability for strong diagnostic capabilities
- Compliant with IEEE 802.3z Gigabit Ethernet
- Class 1 Laser safety and RoHS compliant
Applications
Applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnectionDescription
As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 10G optical modules. They are applicable to data center and campus networks, enabling cost-effective, efficient, and high-speed interconnection among switches, routers, servers, and network interface controllers (NICs). The XG-SFP-LR-SM1310 is aligned to IEEE 10GBASE-LR optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standards.
|
Длина волны TX, nm
? TX (Transmit) длина волны передачи сигнала |
1310 |
|
Длина волны RX, nm
? RX (Receive) длина волны приёма сигнала |
1310 |
|
Дальность, km
|
10 |
|
Cреда передачи
|
SMF |
|
Скорость передачи данных
|
10G |
|
DDM/DOM
? Функции цифрового мониторинга |
Да |
|
Диапазон температур
|
Standard |
|
Температура, °C
|
0...+70 |
|
Тип коннектора
|
LC-DX |
|
Серия исполнения
? Серия устройств по функциональному и конструктивному исполнению (форм-фактору) |
SFP+ |
|
Минимальная мощность передачи, dBm
|
-8.2 |
|
Максимальная мощность передачи, dBm
|
0.5 |
|
Чувствительность приемника, dBm
|
-12.6 |
|
Перегрузка Rx, dBm
|
0.5 |
|
Габариты (L x W x H), мм
|
13.5x56.5x8.5 |
|
Поддерживаемый стандарт
|
10G Ethernet |
|
Тип кабеля
|
SMF |
|
Протокол линейной передачи
|
10GBASE-LR |
|
Потребляемая мощность, W
|
1.5 |
