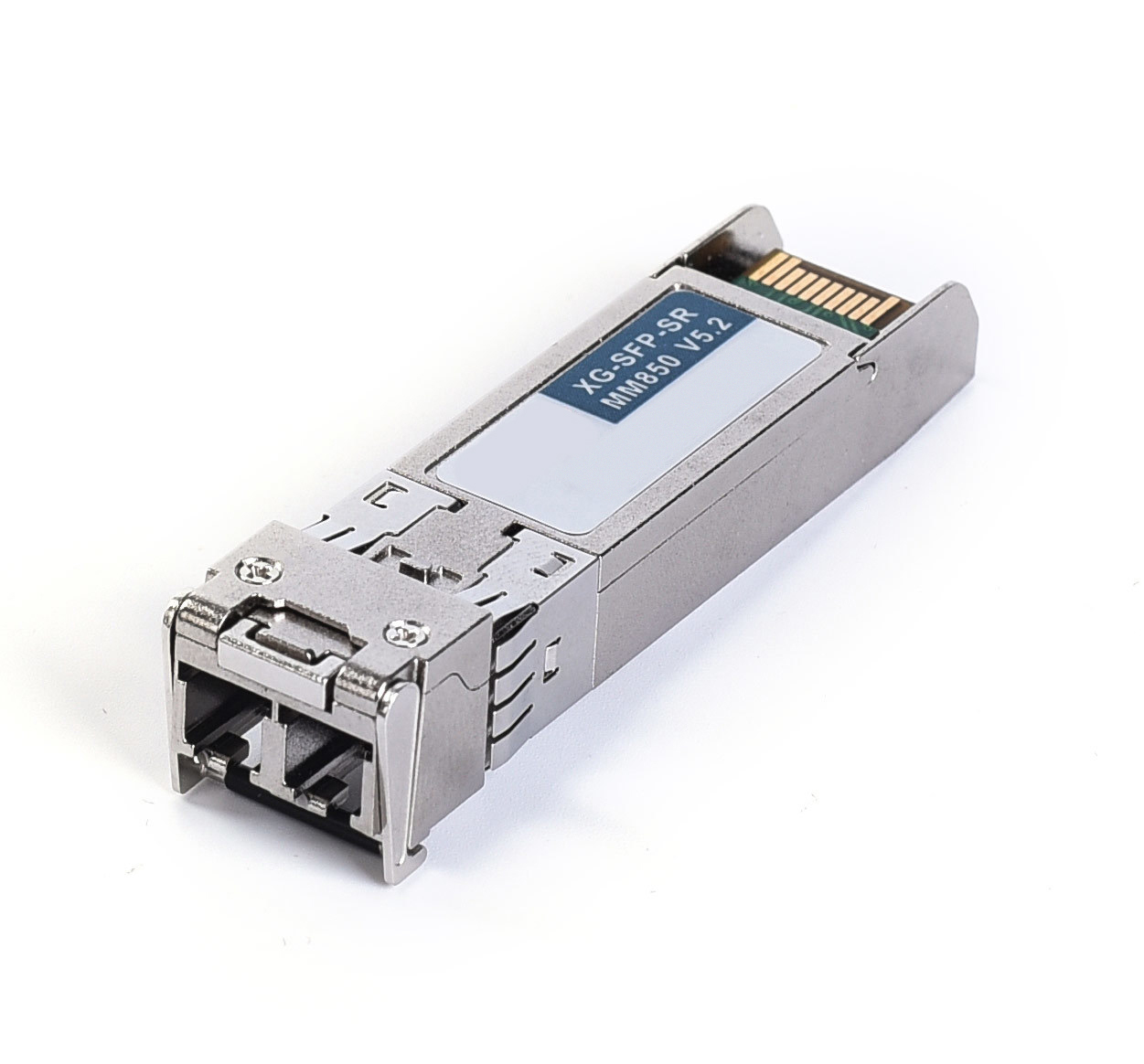

VG-SFP-SR-MM850
документация
Features
- Hot swapping, allowing for simplified maintenance
- High reliability and low power consumption, allowing for prolonged service life
- Compliance with RoHS, REACH, and FDA standards
Applications
As an industry-leading ICT infrastructure and industry solution provider, Ruijie offers customers a wide variety of high-density and low-power 25G optical transceivers. They are applicable to data centers, high-performance computing (HPC) networks, and enterprise core and aggregation layers, enabling cost-effective and efficient high-speed interconnection between data center servers and switches.Description
The VG-SFP-SR-MM850 is aligned to IEEE 25GBASE-SR optical specifications and supports a link length of up to 100 m over an OM4 multimode fiber (MMF) or 70 m over an OM3 MMF with a Duplex LC connector. It adopts the SFP28 form factor and operates at a wavelength of 850 nm. The transceiver conforms to SFF-8432, SFP+ MSA, IEEE802.3by and RoHS standards.
|
Длина волны TX, nm
? TX (Transmit) длина волны передачи сигнала |
850 |
|
Длина волны RX, nm
? RX (Receive) длина волны приёма сигнала |
850 |
|
Дальность, km
|
0.100 |
|
Cреда передачи
|
MMF |
|
Скорость передачи данных
|
25G |
|
DDM/DOM
? Функции цифрового мониторинга |
Да |
|
Диапазон температур
|
Standard |
|
Температура, °C
|
0...+70 |
|
Тип коннектора
|
LC-DX |
|
Серия исполнения
? Серия устройств по функциональному и конструктивному исполнению (форм-фактору) |
SFP28 |
|
Минимальная мощность передачи, dBm
|
–8.4 |
|
Максимальная мощность передачи, dBm
|
2.4 |
|
Чувствительность приемника, dBm
|
–10.3 |
|
Перегрузка Rx, dBm
|
2.4 |
|
Габариты (L x W x H), мм
|
13.5x56.5x8.5 |
|
Поддерживаемый стандарт
|
25G Ethernet |
|
Тип кабеля
|
MMF |
|
Протокол линейной передачи
|
25G Ethernet |
