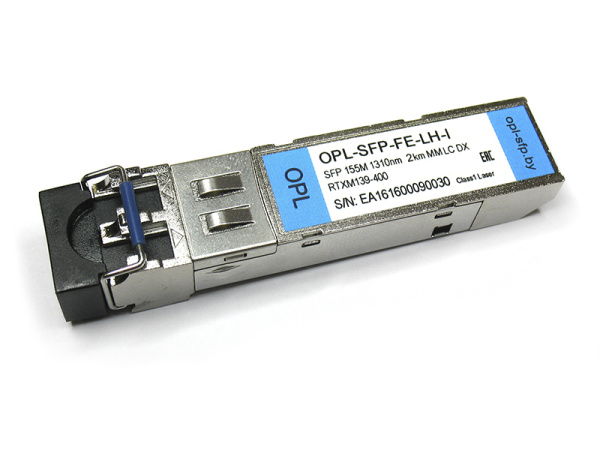

OPL-SFP-FE-LH-I

OPL-SFP-FE-LH-I
документация

Features

• Up to 15km transmission on SMF
• Up to 2km transmission on MMF
• Up to 155Mbps
• 1310nm FP laser and PIN receiver
• 2-wire interface for integrated Digital Diagnostic monitoring
• Hot pluggable
• Very low EMI and excellent ESD protection
• +3.3V power supply
• Powerconsumption less than 1.0W
• Operatingcase temperature: -40~+85°C

Applications

• High-speedstorage area networks
• Computercluster cross-connect
• Customhigh-speed data pipes

Compliance

• Compliant with ITU-TG.957
• Compliant with MSASFF-8472
• Compliant with SFPMSA

Description

OPL-SFP-FE-LH-I is a high performance, cost effective modules, which is supporting up to 155Mbps, and transmission distance up to 2km on MM fiber. The transceiver consists of two sections: The transmitter section incorporates a laser driver and a 1310nm FP laser. The receiver section consists of a PIN photodiode integrated with a transimpedance preamplifier (TIA) and a Limitting Amplifier. The module is hot pluggable into the 20-pin connector. The high-speed electrical interface is base on low voltage logic, with nominal 100Ohms differential impedance and AC coupled in the module.

The optical output can be disabled by LVTTL logic high-level input of TX_DIS. Transmit Fault (Tx_Fault) is provided to indicate that the module transmitter has detected a fault condition related to laser operation or safety. Loss of signal (RX_LOS) output is provided to indicate the loss of an input optical signal of receiver. A serial EEPROM in the transceiver allows the user to access transceiver monitoring and configuration data via the 2-wire SFP Management Interface. This interface uses a single address, A0h, with a memory map divided into alower and upper area. Basic digital diagnostic (DD) data is held in the lower area while specific data is held in a series of tables in the high memory area.
