Основные модели трансиверов Ruijie
- Серия RG 1000BASE
- SFP RJ-45
- 1G SFP
- Серия 2.5G BASE
- 2.5G SFP
- Серия RG 10GBASE
- 10G SFP+
- Серия RG 25GBASE
- 25G SFP28
- 25G AOC
- Серия RG 40GBASE
- 40G QSFP+
- 40G AOC
- Серия RG 100GBASE
- 100G QSFP28
- 100G AOC
- Серия RG 200GBASE
- 200G QSFP56
- 200G QSFP112
- Серия RG 400GBASE
- 400G QSFP-DD
- 400G OSFP
- 400G QSFP112
- 400G AOC
Трансиверы Ruijie производятся в широком ассортименте оптических SFP модулей с диапазоном скоростей 100M, 1G, 10G, 25G, 40G, 100G и выше. Применяются в центрах обработки данных и других сетях, обеспечивая экономичное, эффективное и высокоскоростное соединение между коммутаторами, маршрутизаторами, серверами и контроллерами сетевых интерфейсов (NIC). Компания Опатов является первым поставщиком продукции Ruijie в РБ. Вы имеете возможность купить трансиверы в Минске без посредников. Большинство моделей имеются в наличии, остальные поставляются под заказ. Высокое качество и лучшая цена трансиверов Ruijie, по отношению к конкурентам, сделает реализацию ваших масштабных и передовых проектов особенно выгодной.
В таблице перечислены основные модели трансиверов Ruijie. SFP-модули представлены по группам, в зависимости от их технических параметров и области применения. Таблица включает информацию о наименованиях моделей, основных параметрах и ссылки на документацию. При необходимости наши специалисты проконсультируют и помогут подобрать подходящие устройства для вашей сети.
Расположение офиса и склада компании по одному адресу, позволяет заказать и купить трансиверы в Минске максимально быстро и удобно. Постоянным клиентам и оптовым покупателям предоставляются скидки. По вашему желанию, мы можем организовать доставку по всей территории РБ. Оформить заказ вы можете на основном сайте компании opatov.by
| Наименование | Основные параметры | Док |

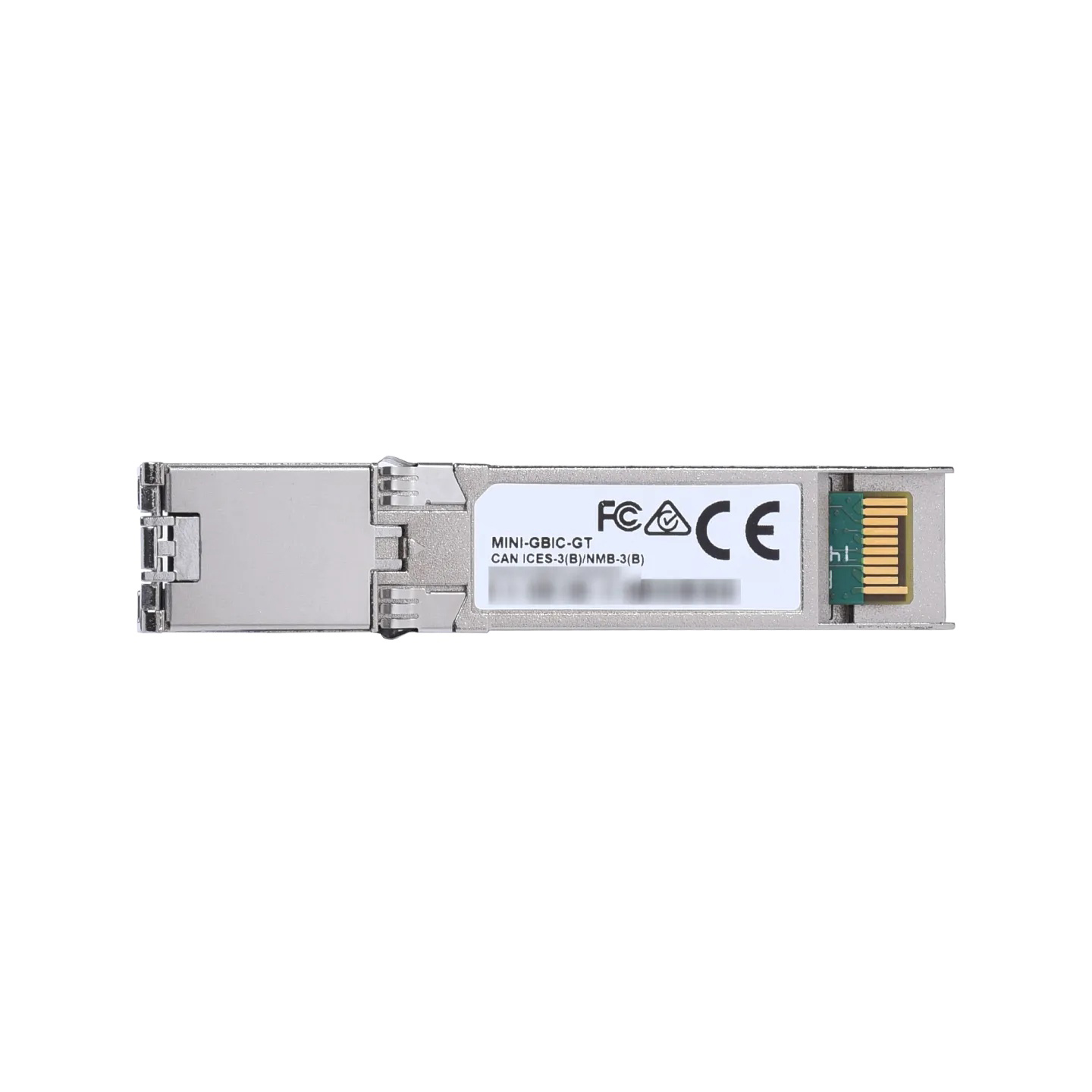

| Трансивер Mini-GBIC-GT |
The MINI-GBIC-GT is an IEEE 1000base-X to 1000base-T media converter and supports a link length of up to 100 meters over a Cat 5e/6/6a cable with an RJ45 connector. It adopts the SFP form factor. The port needs to be conffgured with auto-negotiation. The transceiver conforms to IEEE 802.3ab, SFP+ MSA, and RoHS standards |
 |
| Трансивер GE-SFP-LX20-SM1550-BIDI |
The GE-SFP-LX20-SM1550-BIDI is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 20 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1550 nm. The transceiver is compliant to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards |
|
| Трансивер GE-SFP-LH40-SM1550-BIDI |
The GE-SFP-LH40-SM1550-BIDI is aligned to IEEE 1000BASE-LH optical specifications and supports a link length of up to 40 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1550 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards |
|
| Трансивер GE-SFP-LX03-SM1550-BIDI-I |
The GE-SFP-LX03-SM1550-BIDI-I is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 3 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1550 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards |
|
| Трансивер MINI-GBIC-LX-SM1310 |
The MINI-GBIC-LX-SM1310 is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards |
|
| Трансивер MINI-GBIC-ZX80-SM1550 |
The MINI-GBIC-ZX80-SM1550 is aligned to IEEE 1000BASE-ZX optical specifications and supports a link length of up to 80 kilometers over an SMF with an LC connector. It adopts the SFP form factor and operates at a wavelength of 1550 nm. The transceiver conforms to the IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards |
|
| Трансивер GE-SFP-LX20-SM1310-BIDI |
The GE-SFP-LX20-SM1310-BIDI is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 20 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to the IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards |
|
| Трансивер GE-SFP-LH40-SM1310-BIDI |
The GE-SFP-LH40-SM1310-BIDI is aligned to IEEE 1000BASE-LH optical specifications and supports a link length of up to 40 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards |
|
| Трансивер GE-SFP-LX03-SM1310-BIDI-I |
The GE-SFP-LX03-SM1310-BIDI-I is aligned to IEEE 1000BASE-LX optical specifications and supports a link length of up to 3 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards |
|
| Трансивер MINI-GBIC-SX-MM850 |
The MINI-GBIC-SX-MM850 is aligned to IEEE 1000BASE-SR optical specifications and supports a link length of up to 550 meters over a multimode fiber (MMF) with an LC connector. It adopts the SFP form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ Multisource Agreement (MSA), and RoHS standards |
|
| Трансивер MINI-GBIC-LH40-SM1310 |
The MINI-GBIC-LH40-SM1310 is aligned to IEEE 1000BASE-LH optical specifications and supports a link length of up to 40 kilometers over an SMF with an LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3, SFF-8472, SFF-8431, SFF-8432, SFP+ MSA, and RoHS standards |
|
| Трансивер 2.5G-SFP-LX03-SM1310-BIDI-I |
The 2.5G-SFP-LX03-SM1310-BIDI-I is aligned to IEEE 2.5GBASE-LX optical specifications and supports a link length of up to 3 kilometers over a single mode fiber (SMF) with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to SFF-8431, SFF-8472, and RoHS standards |
|
| Трансивер 2.5G-SFP-LX03-SM1550-BIDI-I |
The 2.5G-SFP-LX03-SM1550-BIDI-I is aligned to IEEE 2.5GBASE-LX optical specifications and supports a link length of up to 3 kilometers over an SMF with a BIDI LC connector. It adopts the SFP form factor and operates at a wavelength of 1550 nm. The transceiver conforms to SFF-8431, SFF-8472, and RoHS standards |
|
| Трансивер XG-SFP-LR10-SM1330-BIDI-I |
The XG-SFP-LR10-SM1310-BIDI-I is aligned to IEEE 10GBASE-LR optical specifications and supports a link length of up to 10 kilometers over an SMF with a BIDI LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1330 nm. The transceiver conforms to the IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standards |
|
| Трансивер XG-SFP-ZR-SM1550 |
The XG-SFP-ZR-SM1550 is aligned to IEEE 10GBASE-ZR optical specifications and supports a link length of up to 80 kilometers over an SMF with an LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1550 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standard |
|
| Трансивер XG-SFP-ER-SM1550 |
The XG-SFP-ER-SM1550 is aligned to IEEE 10GBASE-ER optical specifications and supports a link length of up to 40 kilometers over an SMF with an LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1550 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standards |
|
| Трансивер XG-SFP-LR10-SM1270-BIDI-I |
The XG-SFP-LR10-SM1270-BIDI-I is aligned to IEEE 10GBASE-LR optical specifications and supports a link length of up to 10 kilometers over an SMF with a BIDI LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1270 nm. The transceiver conforms to the IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standards |
|
| Трансивер XG-SFP-LR-SM1310 |
The XG-SFP-LR-SM1310 is aligned to IEEE 10GBASE-LR optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with an LC connector. It adopts the SFP+ form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ MSA, and RoHS standards |
|
| Трансивер XG-SFP-SR-MM850 |
The XG-SFP-SR-MM850 is aligned to IEEE 10GBASE-SR optical specifications and supports a link length of up to 300 meters over a multimode fiber (MMF) with an LC connector. It adopts the SFP+ form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3ae, SFF-8431, SFP+ Multisource Agreement (MSA), and RoHS standards |
|
| Трансивер VG-SFP-SR-MM850 |
The VG-SFP-SR-MM850 is aligned to IEEE 25GBASE-SR optical specifications and supports a link length of up to 100 m over an OM4 multimode fiber (MMF) or 70 m over an OM3 MMF with a Duplex LC connector. It adopts the SFP28 form factor and operates at a wavelength of 850 nm. The transceiver conforms to SFF-8432, SFP+ MSA, IEEE802.3by and RoHS standards |
|
| Трансивер VG-SFP-LR-SM1310 |
The VG-SFP-LR-SM1310 is aligned to IEEE 25GBASE-LR optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with a Duplex LC connector. It adopts the SFP28 form factor and operates at a wavelength of 1310 nm. The transceiver conforms to SFF-8432, SFF-8431, SFP+MSA, IEEE 802.3cc, and RoHS standards |
|
| Кабель AOC VG-SFP-AOCXM |
SFP28 25G to SFP28 40G active optical cables (AOCs) are suitable for short-distance transmission and offer a flexible way to connect within and across racks. AOCs are much thinner and lighter than copper cables, which makes cable management easier. AOCs enable efficient system airflow, which is crucial in high-density racks. There are three models available: VG-SFP-AOC5M and VG-SFP-AOC7M in a length of 5 meters, and 7 meters respectively |
|
| Трансивер 40G-QSFP-SR-MM850 |
The 40G-QSFP-SR-MM850 is aligned to IEEE 40GBASE-SR optical specifications and supports a link length of up to 150 m over an OM4 multimode fiber (MMF) or 100 m over an OM3 MMF with an MPO connector. It adopts the QSFP+ form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3ba 40GBASE-SR4, FF-8436 QSFP+ MSA, and RoHS standards |
|
| Трансивер 40G-QSFP-LSR-MM850 |
The 40G-QSFP-LSR-MM850 is aligned to IEEE 40GBASE-LSR optical specifications and supports a link length of up to 400 m over an OM4 MMF or 300 m over an OM3 MMF over an MMF with an MPO connector. It adopts the QSFP+ form factor and operates at a wavelength ranging from 840 nm to 860 nm. The transceiver conforms to IEEE 802.3ba 40GBASE-SR4, FF-8436 QSFP+ Multisource Agreement (MSA), and RoHS standards |
|
| Трансивер 40G-QSFP-LR4-SM1310 |
The 40G-QSFP-LR4-SM1310 is aligned to IEEE 40GBASE-LR4 optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with a Duplex LC connector. It adopts the QSFP+ form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3ba 40GBASE-LR4, FF- 8436 QSFP+ MSA, and RoHS standards |
|
| Трансивер 40G-QSFP-LR4-PSM-SM1310 |
The 40G-QSFP-LR4-PSM-SM1310 is aligned to IEEE 40GBASE-LR4 optical specifications and supports a link length of up to 10 kilometers over an SMF with an MPO connector. It adopts the QSFP+ form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3ba 40GBASE-LR4, SFF-8436 QSFP+ MSA, and RoHS standards |
|
| Трансивер 40G-QSFP-iLR4-SM1310 |
The 40G-QSFP-iLR4-SM1310 is aligned to IEEE 40GBASE-iLR4 optical specifications and supports a link length of up to 2 kilometers over an SMF with a Duplex LC connector. It adopts the QSFP+ form factor and operates at a wavelength ranging from 1264 nm to 1337 nm. The transceiver conforms to IEEE 802.3ba 40GBASE-IR4, FF- 8436 QSFP+ MSA, and RoHS standards |
|
| Трансивер 40G-QSFP-LX4-SM1310 |
The 40G-QSFP-LX4-SM1310 is aligned to IEEE 40GBASE-LX4 optical specifications and supports a link length of up to 150 meters over OM3 or OM4 MMF or 2 kilometers over SMF with a Duplex LC connector. It adopts the QSFP+ form factor and operates at a wavelength ranging from 1264 nm to 1337 nm. The transceiver conforms to the IEEE 802.3ba 802.3bm, FF-8436 QSFP+ MSA, and RoHS standards |
|
| Кабель AOC 40G-AOC-xx |
QSFP+ 40G to QSFP+ 40G active optical cables (AOCs) are suitable for short-distance transmission and offer a flexible way to connect within and across racks. AOCs are much thinner and lighter than copper cables, which makes cable management easier. AOCs enable efficient system airflow, which is crucial in high-density racks. The 40G-AOC-xx series cable comes into three models: 40G-AOC-5M, 40G-AOC-10M, and 40G-AOC-30M in lengths of 5 meters, 10 meters, and 30 meters respectively |
|
| Трансивер 100G-QSFP-SR-MM850 |
The 100G-QSFP-SR-MM850 is aligned to IEEE 100GBASE-SR optical specifications and supports a link length of up to 100 m over an OM4 multimode fiber (MMF) or 70 m over an OM3 MMF with an MPO connector. It adopts the QSFP28 form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3bm, QSFP28 Multisource Agreement (MSA), and RoHS standards |
|
| Трансивер 100G-QSFP-SR-MM850-SWDM4 |
The 100G-QSFP-SR-MM850-SWDM4 is aligned to 100GBASE-SR optical specifications and supports a link length of up to 100 m over an OM4 MMF or 70 m over an OM3 MMF with a Duplex LC connector. It adopts the QSFP28 form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3bm, QSFP28 MSA, and RoHS standards |
|
| Трансивер 100G-QSFP-LR4-SM1310 |
The 100G-QSFP-LR4-SM1310 is aligned to IEEE 100GBASE-LR4 optical specifications and supports a link length of up to 10 kilometers over a single-mode fiber (SMF) with a Duplex LC connector. It adopts the QSFP28 form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3ba, QSFP28 MSA, and RoHS standards |
|
| Трансивер 100G-QSFP-iLR4-SM1310 |
The 100G-QSFP-iLR4-SM1310 is aligned to IEEE 100GBASE-iLR4 optical specifications and supports a link length of up to 2 kilometers over an SMF with a Duplex LC connector. It adopts the QSFP28 form factor and operates at a wavelength of 1310 nm. The transceiver conforms to 100GE CWDM4 MSA, QSFP28 MSA, IEEE 802.3bm and RoHS standards |
|
| Трансивер 100G-QSFP-ER4-SM1310 |
The 100G-QSFP-ER4-SM1310 is aligned to IEEE 100GBASE-ER4 optical specifications and supports a link length of up to 40 kilometers over an SMF with a Duplex LC connector. It adopts the QSFP28 form factor and operates at a wavelength of 1310 nm. The transceiver conforms to 100G 4WDM-40 MSA and RoHS standards |
|
| Трансивер 100G-QSFP-SR-MM-BIDI |
The 100G-QSFP-SR-MM-BIDI is aligned to IEEE 100GBASE-BIDI optical specifications and supports a link length of up to 100 m over an OM4 MMF or 70 m over an OM3 MMF with a Duplex LC connector. It adopts the QSFP28 form factor and operates at a wavelength of 850 nm or 908 nm. The transceiver conforms to IEEE 802.3bm, QSFP28 MSA, and RoHS standards |
|
| Трансивер 100G-QSFP-DR1-SM1310 |
The 100G-QSFP-DR1-SM1310 is aligned to IEEE 100GBASE-DR1 optical specifications and supports a link length of up to 500 m over an SMF with a Duplex LC connector. It adopts the QSFP28 form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3cu, QSFP28 MSA, and RoHS standards |
|
| Кабель AOC 100G-AOC-xx |
QSFP28 100G to QSFP28 100G active optical cables (AOCs) are suitable for short-distance transmission and offer a flexible way to connect within and across racks. AOCs are much thinner and lighter than copper cables, which makes cable management easier. AOCs enable efficient system airflow, which is crucial in high-density racks. The 100G-AOC-xx series cable comes into three models: 100G-AOC-3M, 100G-AOC-5M and 100G-AOC- 10M in lengths of 5 meters and 10 meters, respectively |
|
| Трансивер 200G-Q56-SR4-MM850 |
The 200G-Q56-SR4-MM850 is aligned to IEEE 200GBASE-SR4 optical specifications and supports a link length of up to 100 meters over a multimode fiber (MMF) with an MPO-12 APC connector. It adopts the QSFP56 form factor and operates at a wavelength of 850 nm. The transceiver is compliant to the IEEE 802.3cd, QSFP56 MSA, and SFF-8636 standards |
|
| Трансивер 200G-Q56-SR4-MM850(D) |
The 200G-Q56-SR4-MM850(D) is aligned to IEEE 200GBASE-SR4 optical specifications and supports a link length of up to 100 meters over a multimode fiber (MMF) with an MPO-12 APC connector. It adopts the QSFP56 form factor and operates at a wavelength of 850 nm. The transceiver is compliant to the IEEE 802.3cd, QSFP56 MSA, and CMIS standards |
|
| Трансивер 200G-Q56-SR4-MM850(B) |
The 200G-Q56-SR4-MM850(B) is aligned to IEEE 200GBASE-SR4 optical specifications and supports a link length of up to 100 meters over a multimode fiber (MMF) with an MPO-12 UPC connector. It adopts the QSFP56 form factor and operates at a wavelength of 850 nm. The transceiver is compliant to the IEEE 802.3cd, QSFP56 MSA, and CMIS standards |
|
| Трансивер 200G-Q112-VR2-MM850 |
The 200G-Q112-VR2-MM850 is aligned to IEEE 200GBASE-VR2 optical specifications and supports a link length of up to 50 m over an OM4 MMF or 30 m over an OM3 MMF with an MPO-12 APC connector. It adopts the QSFP112 form factor and operates at a wavelength of 850 nm. The transceiver conforms to the IEEE 802.3db, QSFP112 MSA, and CMIS standards |
|
| Трансивер 400G-QDD-SR8-MM850 |
The 400G-QDD-SR8-MM850 is aligned to IEEE 400GBASE-SR8 optical specifications and supports a link length of up to 100 m over an OM4 multimode fiber (MMF) or 70 m over an OM3 MMF with an MPO-16 APC connector. It adopts the QSFP-DD form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3cm, QSFP-DD MSA, and RoHS standards |
|
|
Трансивер 400G-QDD-FR4-SM1310 |
The 400G-QDD-FR4-SM1310 is aligned to IEEE 400GBASE-FR4 optical specifications and supports a link length of up to 2 kilometers over a single-mode fiber (SMF) with a Duplex LC connector. It adopts the QSFP-DD form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3bs, QSFP-DD MSA, and RoHS standards |
|
|
Трансивер 400G-QDD-DR4-SM1310 |
The 400G-QDD-DR4-SM1310 is aligned to IEEE 400GBASE-DR4 optical specifications and supports a link length of up to 500 meters over an SMF with an MPO-12 APC connector. It adopts the QSFP-DD form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3bs, QSFP-DD MSA, and RoHS standards |
|
|
Трансивер 400G-QDD-SR4-MM850 |
The 400G-QDD-SR4-MM850 is aligned to IEEE 400GBASE-SR4 optical specifications and supports a link length of up to 100 m over an OM4 MMF or 60 m over an OM3 MMF with an MPO-12 APC connector. It adopts the QSFP-DD form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3db, QSFP-DD MSA, and RoHS standards |
|
|
Трансивер 400G-OSFP-VR4-MM850 |
The 400G-OSFP-VR4-MM850 is aligned to IEEE 400GBASE-VR4 optical specifications and supports a link length of up to 50 m over an OM4 MMF or 30 m over an OM3 MMF with an MPO-12 APC connector. It adopts the OSFP form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3db, OSFP MSA, and RoHS standards |
|
|
Трансивер 400G-OSFP-SR4-MM850 |
The 400G-OSFP-SR4-MM850 is aligned to IEEE 400GBASE-SR4 optical specifications and supports a link length of up to 100 m over an OM4 MMF or 60 m over an OM3 with an MPO-12 APC connector. It adopts the OSFP form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3db, OSFP MSA, and RoHS standards |
|
|
Трансивер 400G-OSFP-DR4-SM1310 |
The 400G-OSFP-DR4-SM1310 is aligned to IEEE 400GBASE-DR4 optical specifications and supports a link length of up to 500 meters over an SMF with an MPO-12 APC connector. It adopts the OSFP form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3bs, OSFP MSA, and RoHS standards |
|
|
Трансивер 400G-Q112-VR4-MM850 |
The 400G-Q112-VR4-MM850 is aligned to IEEE 400GBASE-VR4 optical specifications and supports a link length of up to 50 m over an OM4 MMF or 30 m over an OM3 MMF with an MPO-12 APC connector. It adopts QSFP112 form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3db, OSFP112 MSA, and RoHS standards |
|
|
Трансивер 400G-Q112-SR4-MM850 |
The 400G-Q112-SR4-MM850 is aligned to IEEE 400GBASE-SR4 optical specifications and supports a link length of up to 100 m over an OM4 MMF or 60 m over an OM3 with an MPO-12 APC connector. It adopts QSFP112 form factor and operates at a wavelength of 850 nm. The transceiver conforms to IEEE 802.3db, OSFP112 MSA, and RoHS standards |
|
|
Трансивер 400G-Q112-DR4-SM1310 |
The 400G-Q112-DR4-SM1310 is aligned to IEEE 400GBASE-DR4 optical specifications and supports a link length of up to 500 meters over an SMF with an MPO-12 APC connector. It adopts the QSFP112 form factor and operates at a wavelength of 1310 nm. The transceiver conforms to IEEE 802.3bs, QSFP112 MSA, and RoHS standards |
|
|
Кабель AOC 400G-QDD- AOCxM |
The 400G-QDD-AOCxM active optical cables (AOCs) are suitable for short-distance transmission and offer a flexible way to connect within and across racks. AOCs are much thinner and lighter than copper cables, which makes cable management easier. AOCs enable efficient system airflow, which is crucial in high-density racks. The AOCs are available in lengths of 3–50 meters. See Ordering Information for details |
|
|
Кабель AOC QDD-2Q56-AOCxM |
The QDD-2Q56-AOCxM and QDD-2Q56-AOCxM(B) breakout AOCs are suitable for short-distance transmission and offer a flexible way to connect within and across racks. The AOC with the breakout point closer to the 400G transceiver is QDD-2Q56-AOCxM, and closer to the 200G transceiver is QDD-2Q56-AOCxM(B). AOCs are much thinner and lighter than copper cables, which makes cable management easier. AOCs enable efficient system airflow, which is crucial in high-density racks. The QDD-2Q56-AOCxM is available in lengths of 3–70 meters. The QDD-2Q56-AOCxM(B) is available in lengths of 10–70 meters. See Ordering Information for details |
|
